Nintendo 64 with UltraHDMI kit

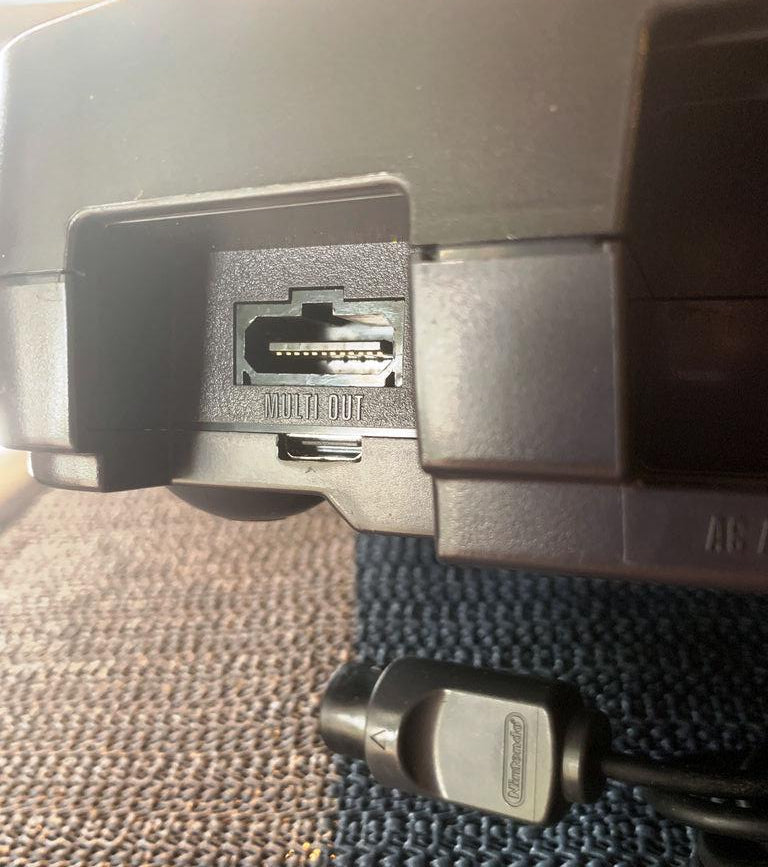

A HDMI conversion has been performed on this console by using the UltraHDMI kit

Includes:

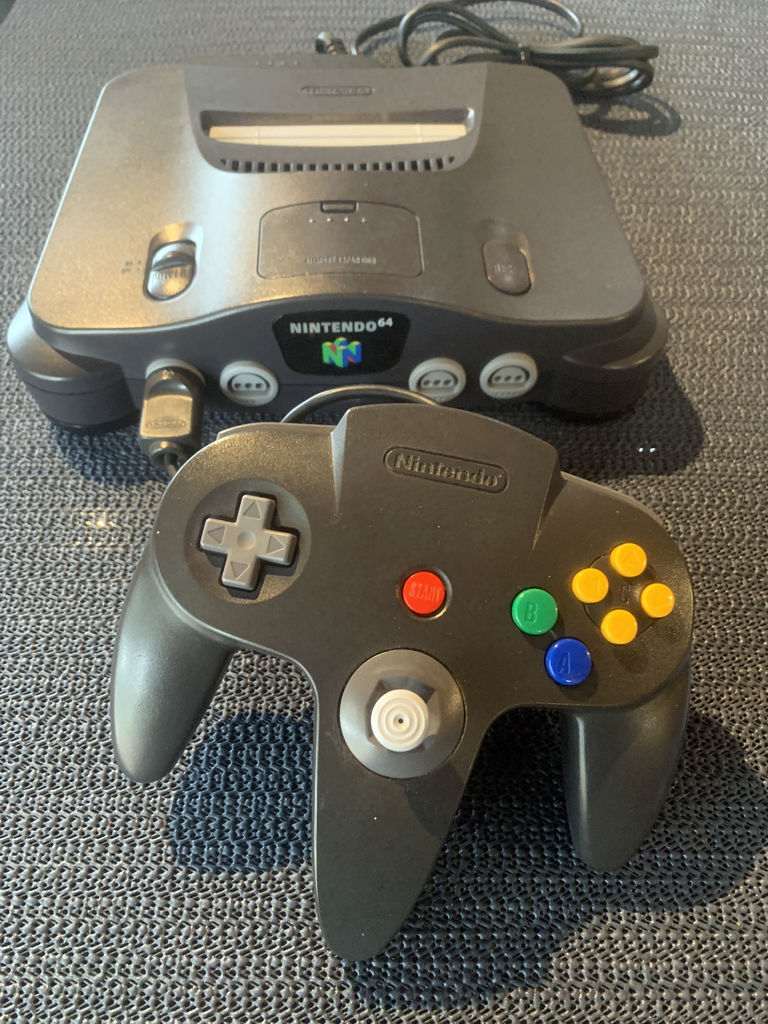

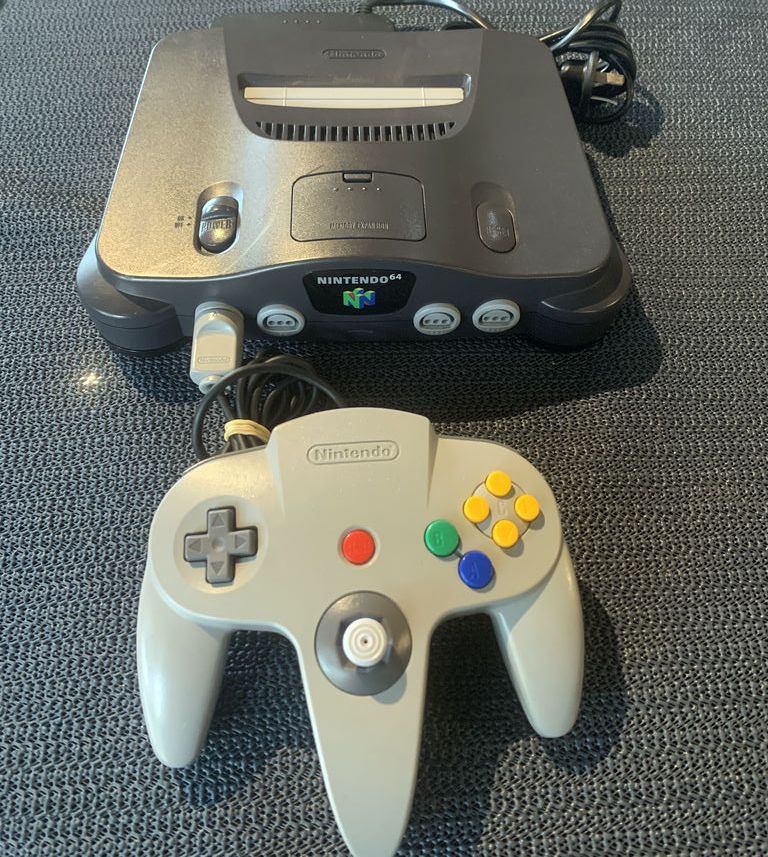

• Console (PAL)
• Genuine Power pack
• Genuine Controller

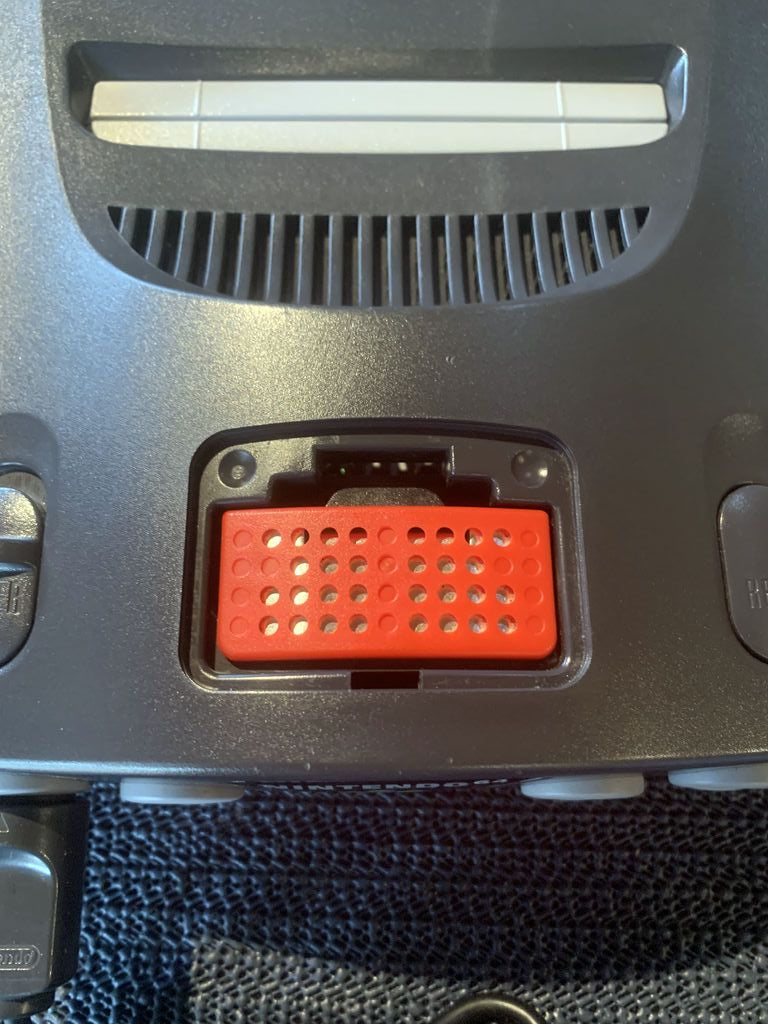

• Genuine 4MB Expansion Pak

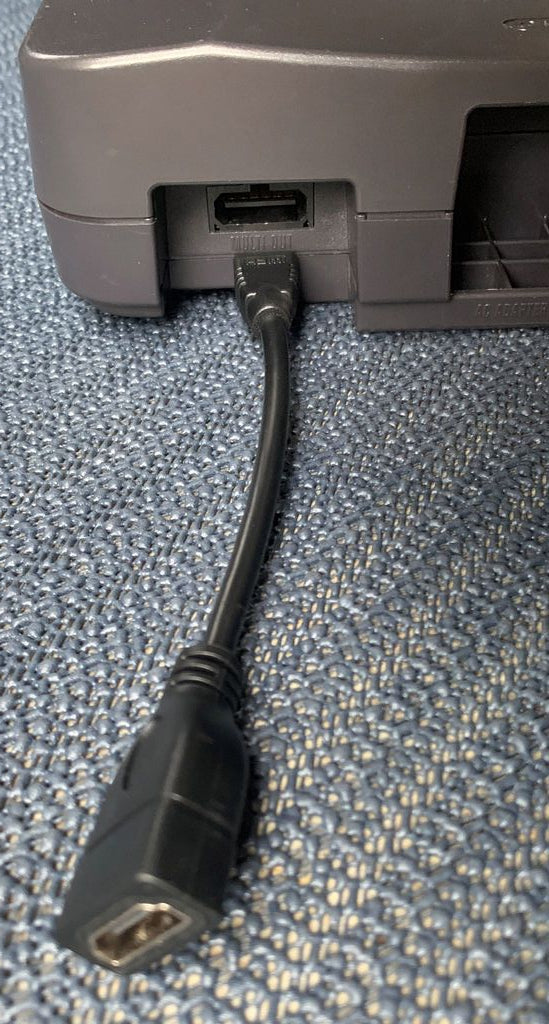

• HDMI Adapter cable from Mini to full size
• HDMI Kit
• Professional installation under a microscope

 Everything is installed and ready to play as a regular console.

Description

Want to play your Nintendo 64 with bit-perfect video and audio, on your modern flat screen TV? This is for you!

The kit has been installed in an N64 console and extracts the raw digital RCP data, capturing video as digital RGB and outputting as a convenient HDMI.

Up to 1080p HDMI output.

The quality blows away the older composite connection and of course basic plug in HDMI solutions that merely take a poor analog signal and digitizes it. This takes digitlal data right off the N64 chips and processes it without lag or interference fro conversion.

The Features:

UltraHDMI is designed to connect to modern TVs and monitors. It generates several different resolutions, and like all the other options, can be configured with the on-screen menu.

• 480p60, 576p50
• 720p60, 50
• 1080p60, 50
• Audio: 48KHz, 16bit digital PCM

All the settings are configurable with an on-screen menu overlay that can be accessed during a game with a button combo.

Every aspect of operation is fully configurable. Just want to play games? It works fine from the get go. Power users can tweak every setting to their liking.

Optionally, it can apply a set of retro filters to make it “feel” more like a tube TV: scanline bleed, nonlinear brightness curve, HV anode sag…

You can turn off all the processing for a zero-delay signal with less than 100 nanoseconds of lag.

Retro RGB review

https://www.retrorgb.com/ultrahdmi.html

Makers page for more info

http://ultrahdmi.retroactive.be/

Quick start guide

http://ultrahdmi.retroactive.be/installer_files/quick_start.pdf
