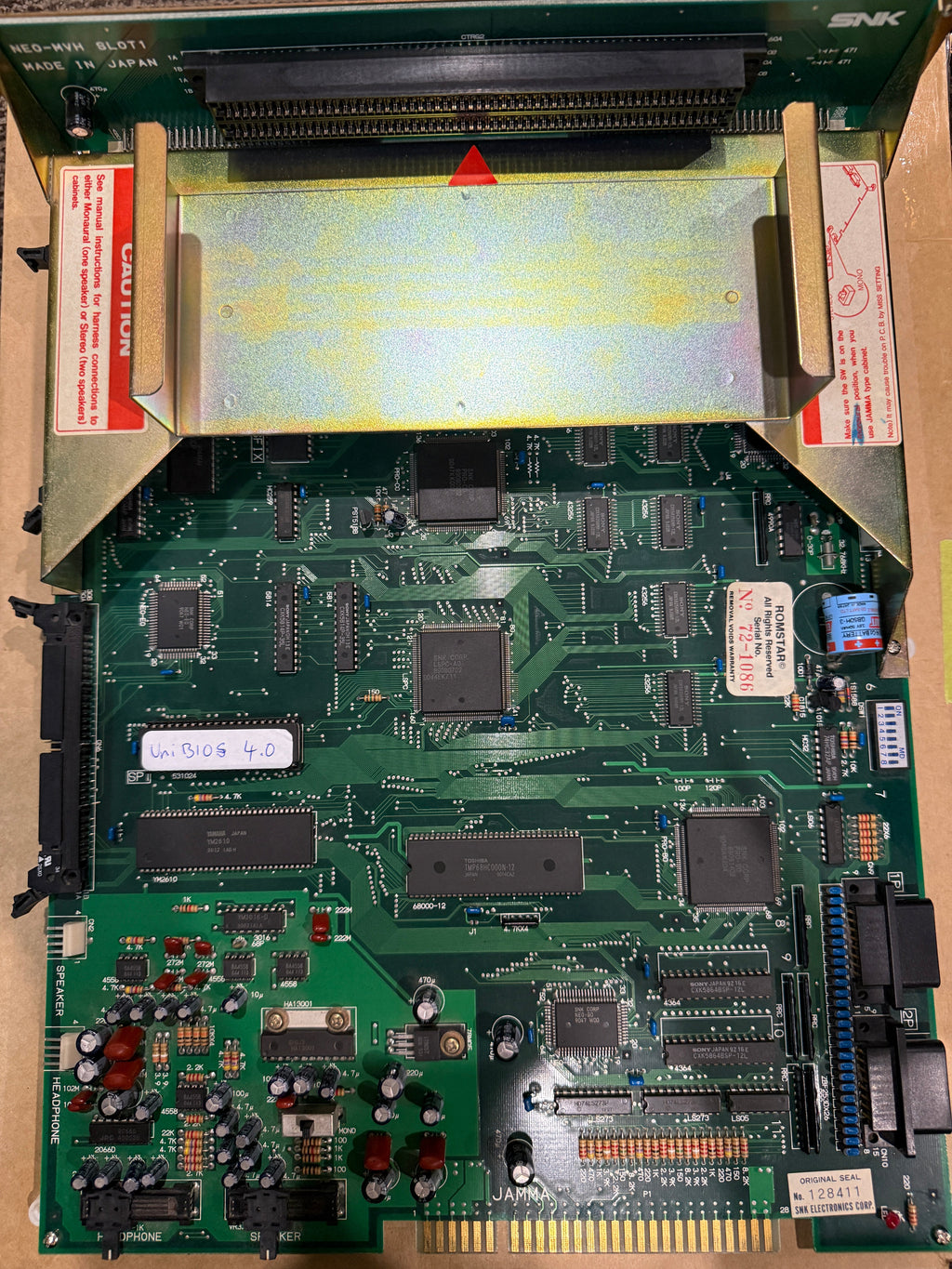

A close-up overhead view of a large green electronic circuit board with multiple integrated circuits, capacitors, connectors, and small labels, photographed inside a cardboard box.

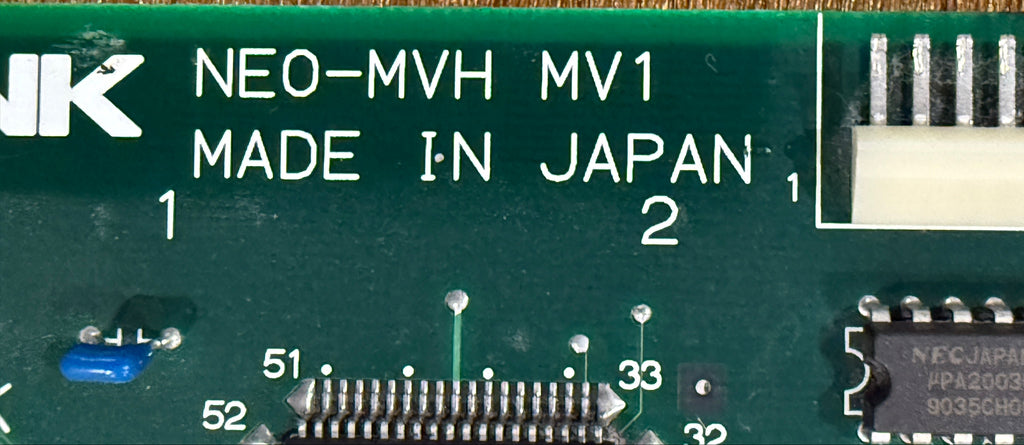

Close-up of a green printed circuit board with white text reading 'NEO-MVH MV1 MADE iN JAPAN' and component markings, placed next to a wood surface.
Console | SNK Neo Geo MVS | MV1 PCB Board Jamma

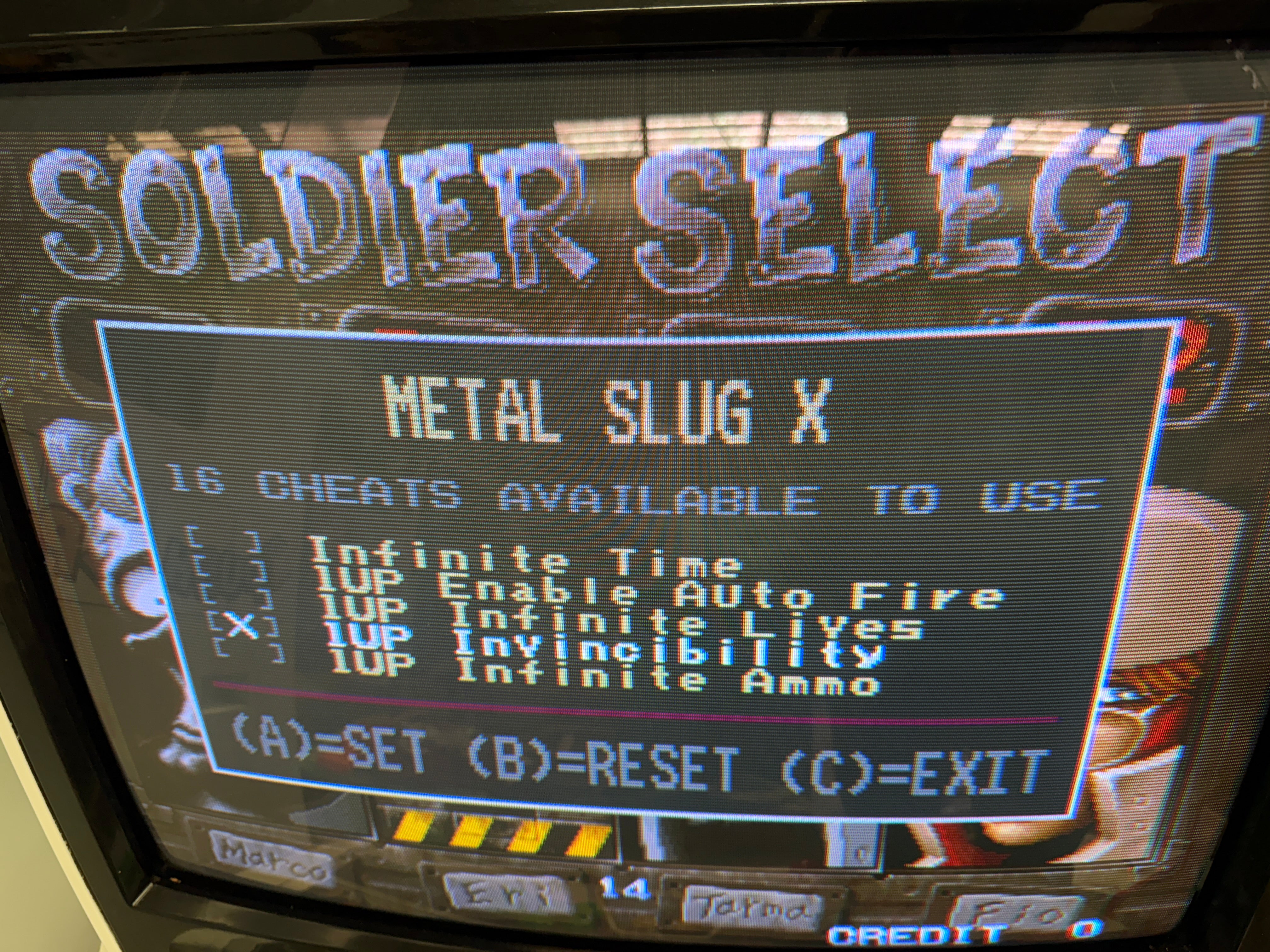

A close-up of a video game screen showing the 'Soldier Select' menu for 'Metal Slug X' with cheat options listed, photographed in a real environment.
Roll over image to zoom in Click on image to zoom
A close-up overhead view of a large green electronic circuit board with multiple integrated circuits, capacitors, connectors, and small labels, photographed inside a cardboard box.Close-up of a green printed circuit board with white text reading 'NEO-MVH MV1 MADE iN JAPAN' and component markings, placed next to a wood surface.Console | SNK Neo Geo MVS | MV1 PCB Board JammaA close-up of a video game screen showing the 'Soldier Select' menu for 'Metal Slug X' with cheat options listed, photographed in a real environment.

Console | SNK Neo Geo MVS | MV1 PCB Board Jamma

SNK
Price:
$999.00 AUD
Stock:
Only 1 unit left

Extended sale on now!

12-Month Warranty - Included on all new and used products.

Description

SNK Neo Geo MVS MV1 1-Slot Arcade PCB Motherboard w/ UniBIOS 4.0

The original, heavy-duty SNK Neo Geo MV1 is the classic full-length 1-slot MVS motherboard that started it all—now upgraded with the legendary Universe BIOS (UniBIOS 4.0). Featuring the signature NEO-NVH riser daughterboard for angled cartridge insertion, built-in memory card controller header, stereo/mono hardware switching, and dual controller ports, this upgraded MV1 delivers the ultimate arcade experience with instant cheat engine access, region switching, and custom DIP settings.

🚀 Upgraded with Universe BIOS v4.0 (UniBIOS)

  • Built-in Cheat Engine: Access infinite health, max power, time freezes, etc with in game menu. Press ABC 1P to load menu.

🛠️ Bench Tested & Operation Confirmed

100% Fully Working Order: This MV1 board has undergone full bench testing on 15kHz arcade setups. Cartridge connection via the NEO-NVH slot riser, UniBIOS boot sequence, RGB video generation, board logic, controller ports, audio output, and JAMMA edge contacts have all been verified functional.

✓ Clean Edge Connector  |  ✓ UniBIOS 4.0 Installed  |  ✓ Full Audio & Video Output Verified

🔥 Features & Hardware Highlights

  • Full-Length Classic PCB: Features the large-format, original SNK MV1 layout built with heavy-duty components and high-grade RGB output.
  • NEO-NVH Riser Board: Equipped with the factory NEO-NVH daughterboard slot for angled cartridge insertion.
  • Dual Controller Ports & Memory Card Header: Includes onboard DB15 joystick ports and memory card connector support (unique to early 1-slot MVS revisions).
  • Hardware Audio Controls: Built-in volume slider with stereo and mono output capability.

Specifications

Model Revision SNK Neo Geo MVS MV1 (Large PCB w/ NEO-NVH Riser)
BIOS Installed Universe BIOS v4.0 (UniBIOS)
Manufacturer SNK Corporation
Cartridge Slot Type 1-Slot Angled (NEO-NVH Riser Board)
Interface Standard 56-Pin JAMMA Edge Connector
Video Signal 15kHz RGBS (Standard Resolution Arcade Monitor / CRT / Supergun)
Condition Used Original Arcade PCB — Fully Tested & Working in our SEGA Astro City arcade cabinet. (Cabinet not included)









Item Condition

Condition: used
